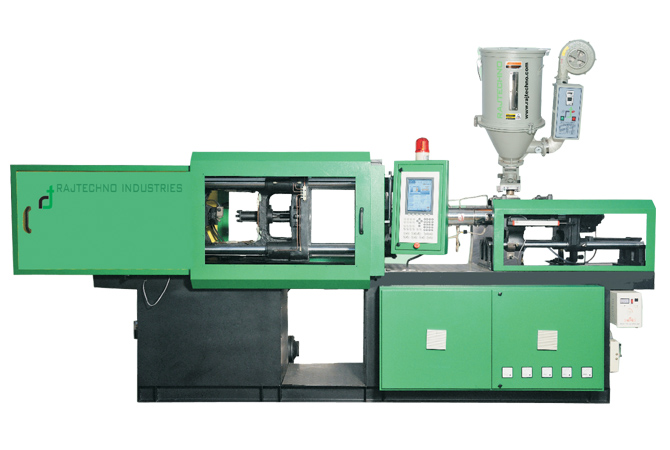

  Horizontal Plastic Injection Molding Machine


Standard Features

Clamp unit

  • Optimized five point double toggles with steel bushes with tempered steel pin.
  • Automatic mould height adjustment for clamping force setting.
  • Hydraulic ejector with multiple strokes
  • Low pressure mould safety.
  • Linear- transducer for clamp closing & opening.
  • Automatic lubrication system with high pressure pump.

Injection unit

Four injection pressure and speeds with three additional holding pressures and speeds.
Cold start protection
Ceramic barrel heater with PID temperature control device.
Six stage injection speed, pressure and position control.
Double cylinder balanced injection system.
High precision linear- transducer control of injection.
Stainless steel hopper magnetic grill. With movable material hopper.

Hydraulic unit

Delivery and suction oil filter.
Sealed oil tank with oil temperature control.
Proportion valves for pressure and delivery control with electronic feedback.
Protection device for over loading of the system.

Optional Features

  • Core pull device
  • T slot on mould pattern
  • Unscrewing device
  • Variable pump
  • Servo power saving system
  • Hopper dryer and auto loader.
  • Mould temperature controller.
  • Chiller for mould cooling.
  • Accumulator for high speed injection & clamping.

Technical Specification

Injection Unit

RT 40 T
RT 70 T
RT 90 T
RT 150 T


A
B
C
A
B
C
A
B
C
Screw diameter mm 28 32 35 38 35 38 40 40 42 45
Screw L/D ratio L/D 18 21.3 19.5 18 21.3 19.5 18 23.1 20.9 19.5
Shot Size (Theoretical) Cu.cm 68 113 135 159 168 198 220 239 263 302
Injection weight (PS) gms 61 102 123 144 162 181 200 217 240 275
Injection Pressure Mpa 120 188 157 133 207 186 168 201 183 159
Screw Stroke mm 110   140     175     190
Screw Speed r/min 0-140   0-240     0-225     0-200
Clamping Unit
Clamping tonnage tonne 40 - 70 - - 90 - - 150
Toggle stroke mm 220   265     320     375
Space between Tie bars mm 275   315     365     410
Max. mould height mm 275   320     380     450
Min. mould height mm 110   120     150     180
Ejector stroke mm 60   75     100     115
Ejector tonnage kn 20   27     27     33
Other Equipments
Max. Pump pressure kg/cm2 175   175 - - 175     175
Pump motor power kw 5   7.5     9.5     13
Heater power kw 3   6.2     6.2     7.2
Machine weight tonne 1.9   2.9     3.2     3.8
Hopper capacity Ltrs. 15   25     25     25
Oil tank capacity Ltrs. 120   160     210     260
Note : We reverve the right to make some changes of product specification without notice
