Plastic Crusher

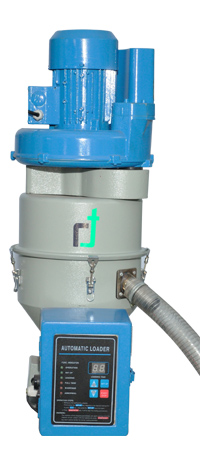

  Hopper Loader


Technical Specification

Model
RTL-300GN
RTL-300GE
RTL-450GE
Motor
Type
Carbon Brush
Carbon Brush
Induction
Specification
1100w1 ø
1100w1 ø
750w3 ø
Conveying Capacity 400 350 400
Static Wind Pressure (Max) 1500mm Aq 1500mm Aq 1500mm Aq
Filter ø 185x115H ø 185x90H ø 185x90H
Volume of Material Hopper (L) 6 6 6
Inside Diameter of Conveying Pipe (mm) ø38 ø38 ø38
EXternal Size Main Body LWH 480x310x430 500x400x600 500x400x800
Material Hopper LWH 430x440x295
Weight Main Body 15.5 13.5 18.5
Material Hopper 5
Note : We reserve the right to make some changes of products specifications without notic
